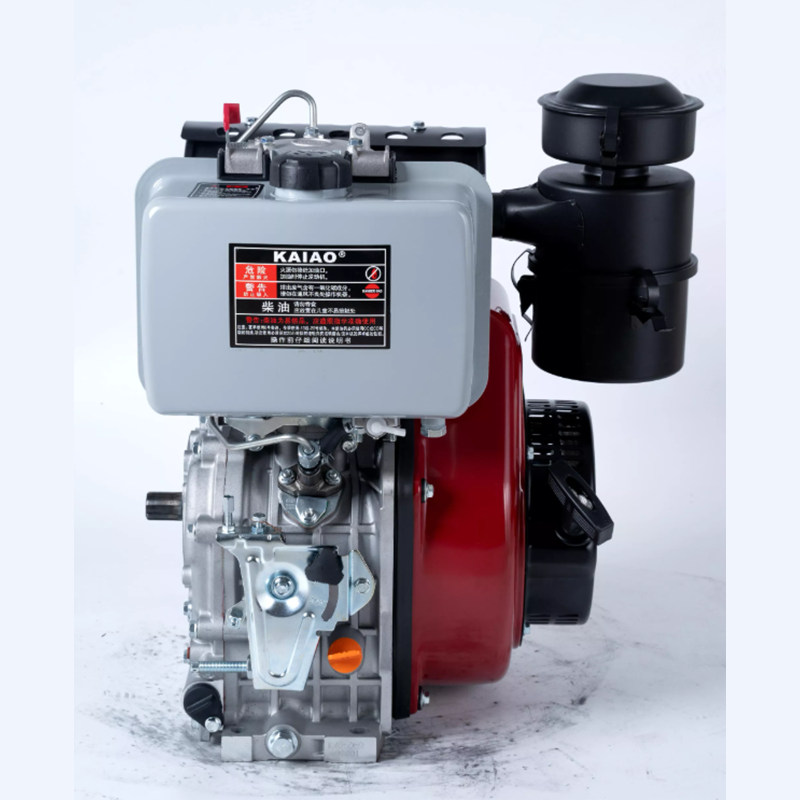

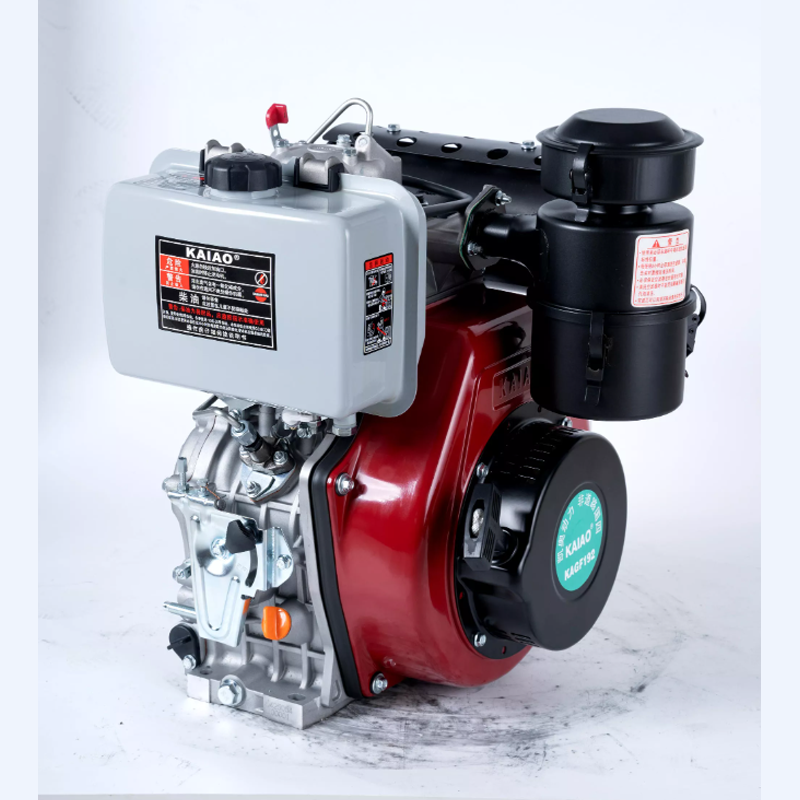

KA195FM-KA195FA Air-cooler Diesel Engine 16hp Highspeed Marine
Air-Cooled System
Fuel Efficiency
Flexible Starting Options
Compact Design
Single-cylinder, horizontal design
Complies with CE and ISO standards, ensuring reliability and safety.
| Model: KA195F | Brand: KAIAO |
| WUXI KAIAO POWER MACHINERY CO., LTD | ||
| Single-Cylinder Diesel Engine | ||
| Model | KA195F | |
| Engine Type | Single-cylinder, Vertical, Four-stroke, Air-cooled | |
| Rated Speed (rpm) | 3000 | 3600 |
| Rated Power (HP/kW) | 11.6 / 7.9 | 12.9 / 9.5 |
| Max Power (HP/kW) | 12.64 / 9.3 | 14.14 / 10.4 |
| Bore × Stroke (mm) | 95 × 75 | |
| Displacement (ml cc) | 532 | |
| Compression Ratio | 19:1 | |
| Starting System | F: Recoil Starter | E: Electric Starter |
| Fuel Tank Capacity (L) Approx. | 5.5 | |
| Fuel Consumption (ml cc) | 3000 rpm ≤ 275 | 3600 rpm ≤ 280 |
| Pack Dimension (L × W × H mm) | 520 × 520 × 570 Option: 520 × 450 × 570 |
|
| Net Weight (KGS) | 50 | |
