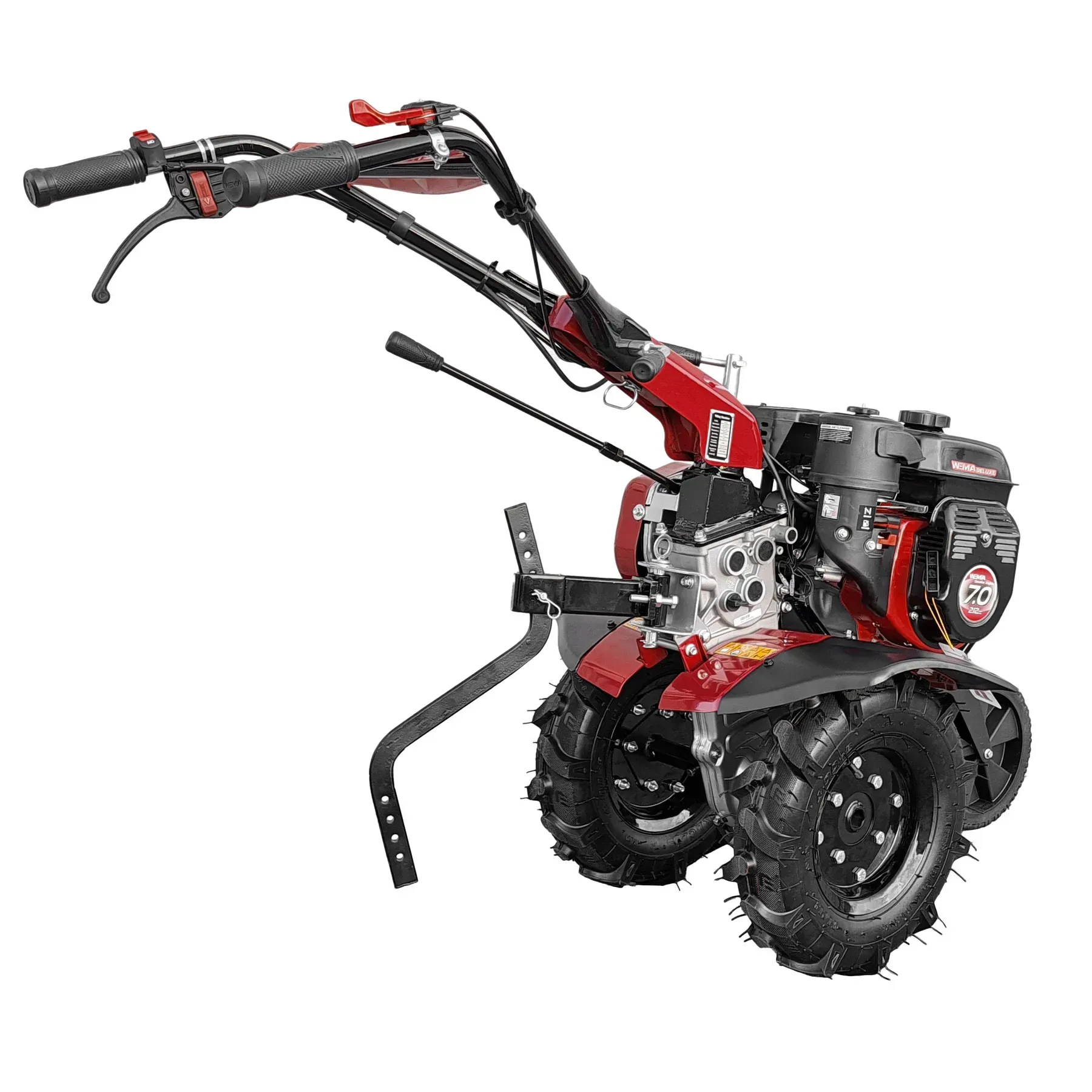

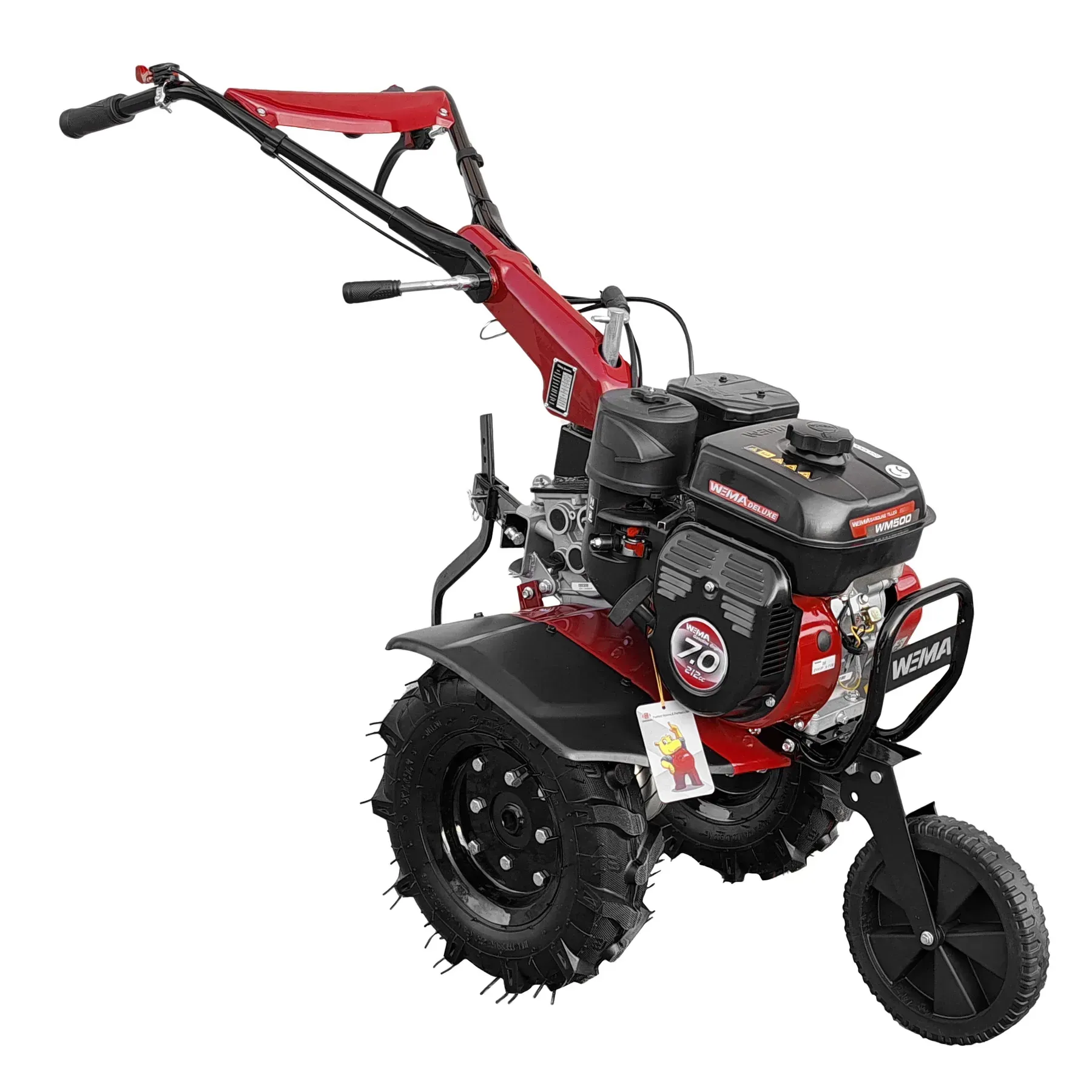

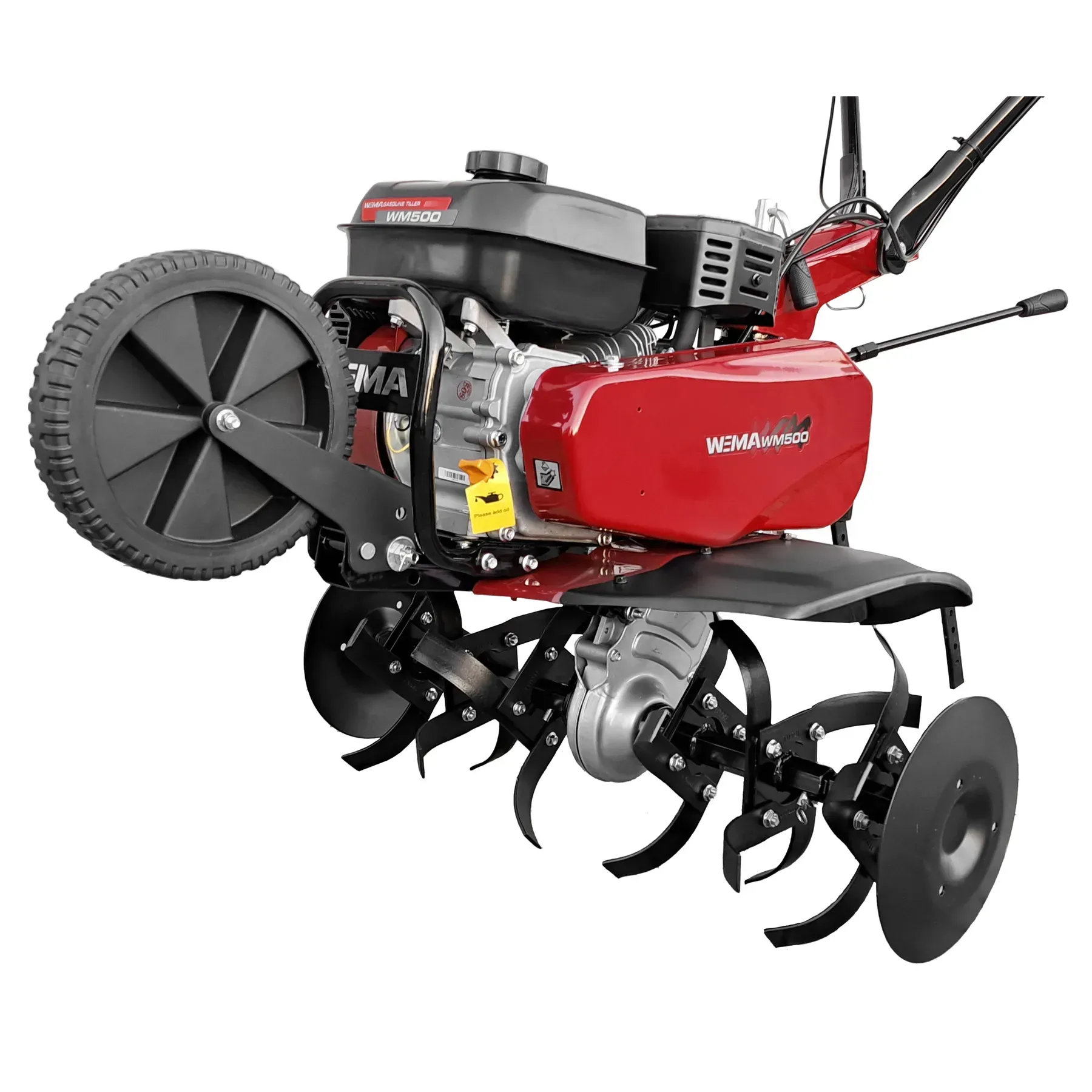

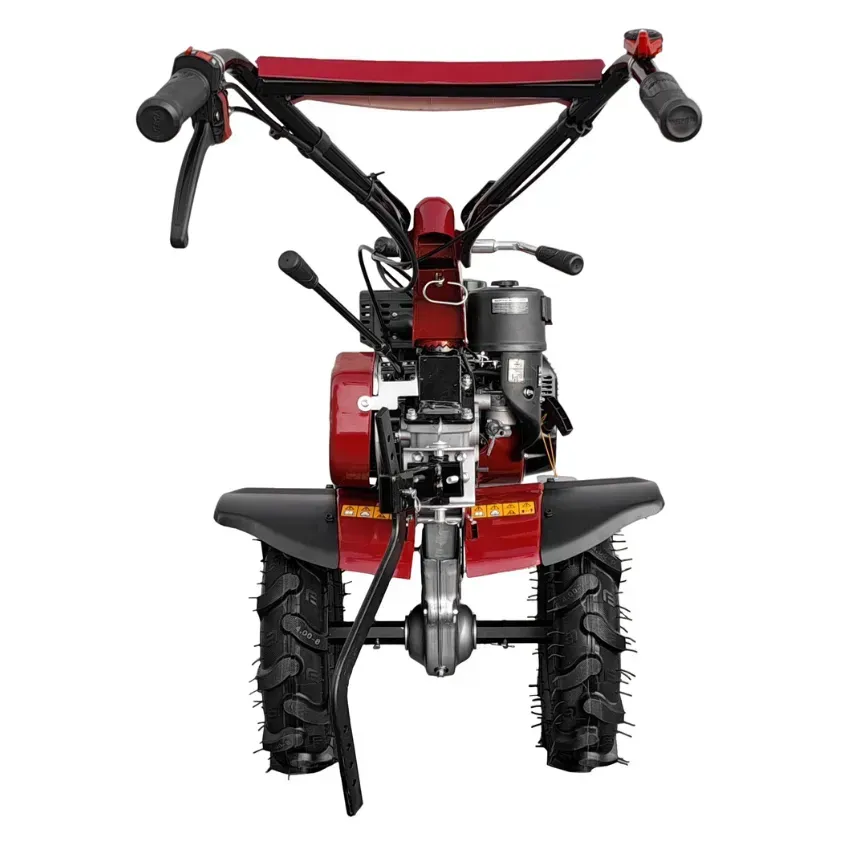

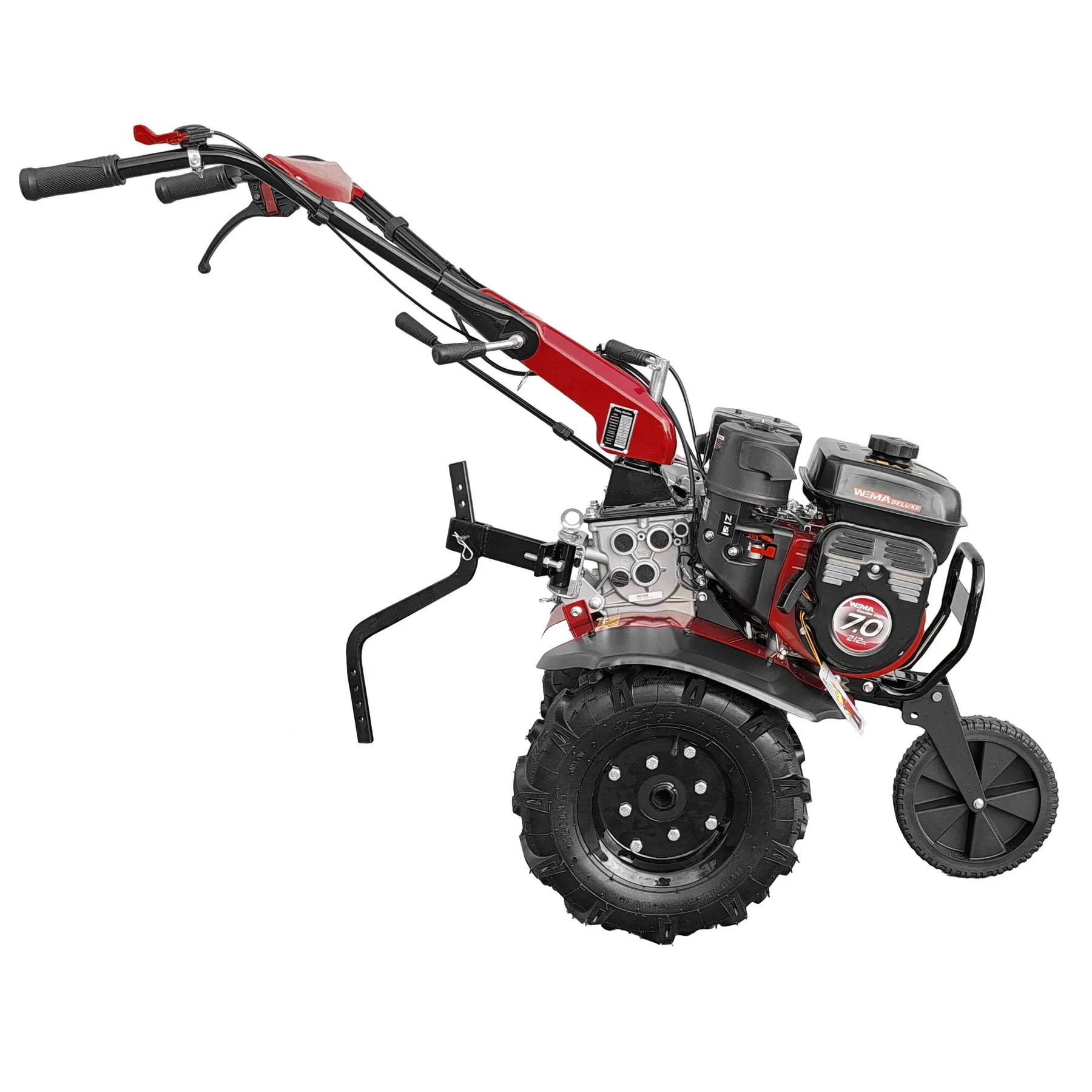

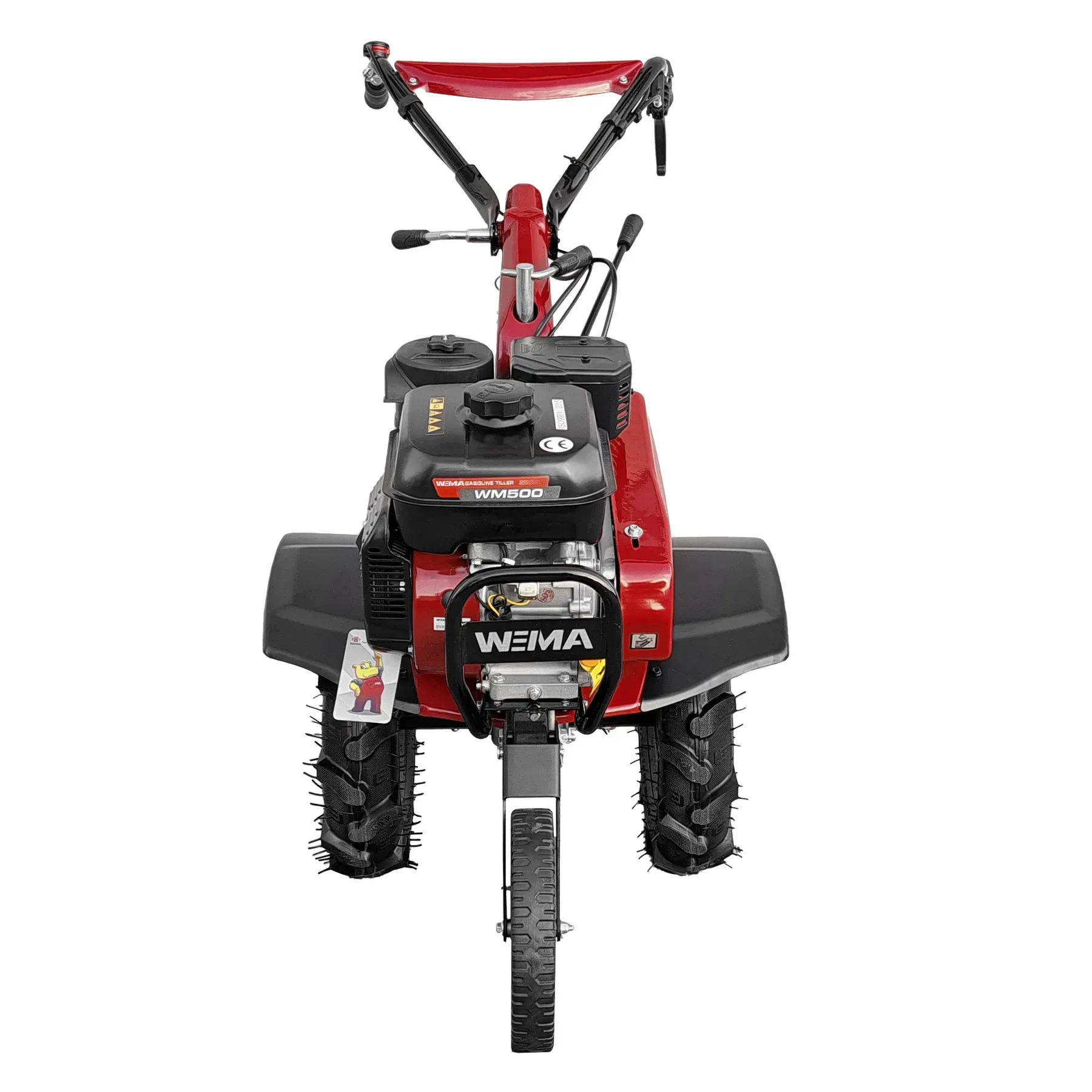

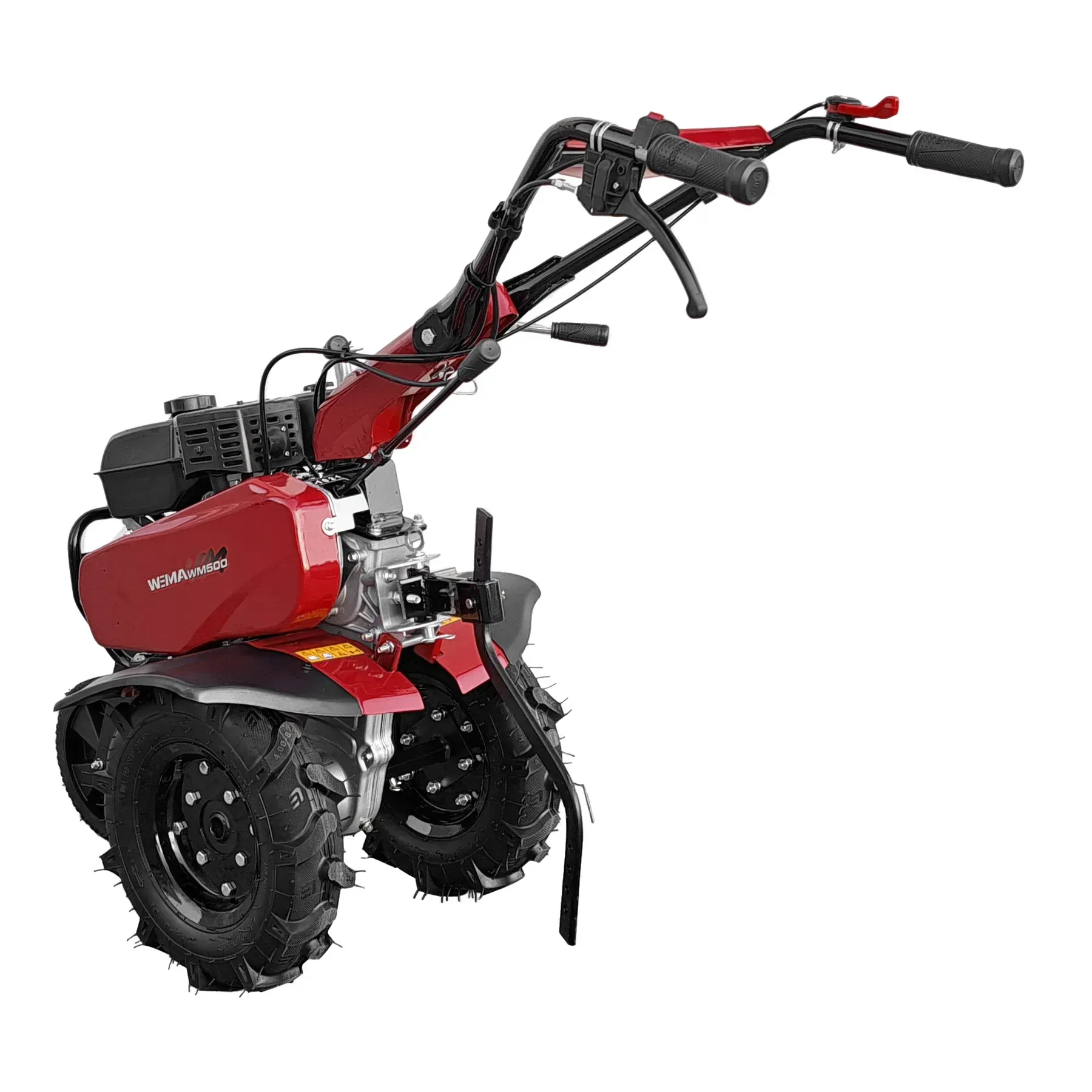

WM500L-WEIMA SENDA 500L TILLER

New tiller Weima WM500 DELUXE is easy to operate and it differs from other analogs by its light weight. Weima WM500 DELUXE serves perfectly for various agricultural tasks on the pieces of grounds up to 40 acres and for inter-row processing on larger areas, thanks to the two-speed gearbox.

This cultivator can work both on small lugs, moving in the space between rows, and on large ones moving along two neighbors. Belt drive on this model protects the engine from overload during different garden and transport operations, as it is known for its reliability and easy maintenance.

Special ergonomic control handle was designed and applied on tiller Weima WM500 DELUXE for the most comfortable operation and transportation. In addition, Weima WM500 DELUXE is distinguished by the presence of three wheels, which greatly facilitates the process of transportation. It enables setting of the high, due to the operator’s desire and turns to different sides. Different attachments can be applied when cultivator Weima WM500 mounted on the metal wheels; for example: plough, hiller, potato-digger, flat-cutter, potato planter, trailer, etc. Four sections rotary blades with a width up to 80 cm are very useful in cultivator and their maximum depth of cultivation is 30 cm.

Categories: , ,

Technical Specifications

Tilling Scope 500 – 800 mm
Tilling Depth 150 – 300 mm
Gear Positions 2 Forward, 1 Reverse
Type of Drive Belting
Wheels 4.00 – 8″
Blades 4 × (2 + 1) pcs.
Engine Weima WM170F
Engine Type Euro 5, 4-Stroke, Single-Cylinder, Air-Cooled
Displacement 212 cm³
Maximum Power 5 kW / 7 HP
Starter Manual
Oil Volume in Gearbox 1 L
Oil Volume in Engine Crankcase 0.6 L
Fuel Tank Capacity 3.6 L
Dimensions (L × W × H) 1380 × 970 × 650 mm
Weight 60 kg
