| Field | Value | Field | Value |
|---|---|---|---|
| Model No. | Wn-G25 | Application Field | Agriculture |
| Farming Policy | Paddy Field Machinery | Power Source | Diesel |
| Operation | Arable Machinery, Movable Operation | Traction Type | Traction |
| Drive Type | Gear Drive | Arbor Configuration | Horizontal Axis |
| Certification | CE | Color | Orange |
| Warranty | 1 year | Engine | Wn2V95fe |
| Rated Power | 18HP | Displacement | 1247cc |
| Track | High Pattern Triangular Track | Track Gauge | 700mm |
| Ground Clearance | 350mm | Net Weight | 650kg |
| Gear | 6 Front, 2 Reverse | Steering Operation Type | Steering Wheel |
| Travel Brake | Internal Expanding Type | Parking Brake | Internal Expanding Type |
| Accessorie Connection Type | Three Point Suspension | Power Output Shaft | Nominal Diameter 35, 6-Tooth Rectangular Spline |
| Tilling Width | 1200mm | Tilling Depth | Above 120mm |
| Transport Package | Container | Specification | 2850 × 1350 × 1340 |

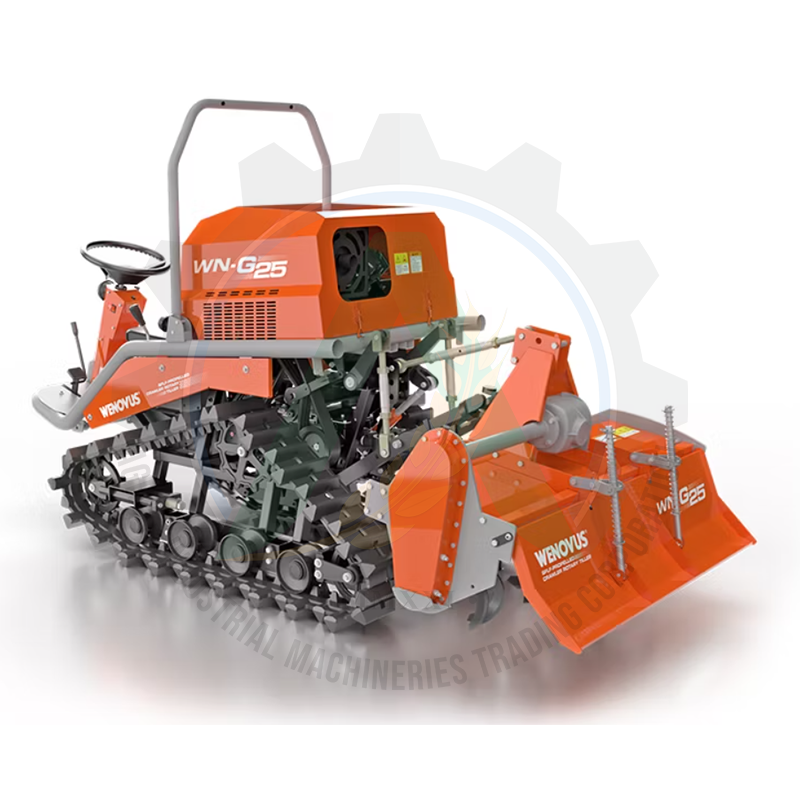

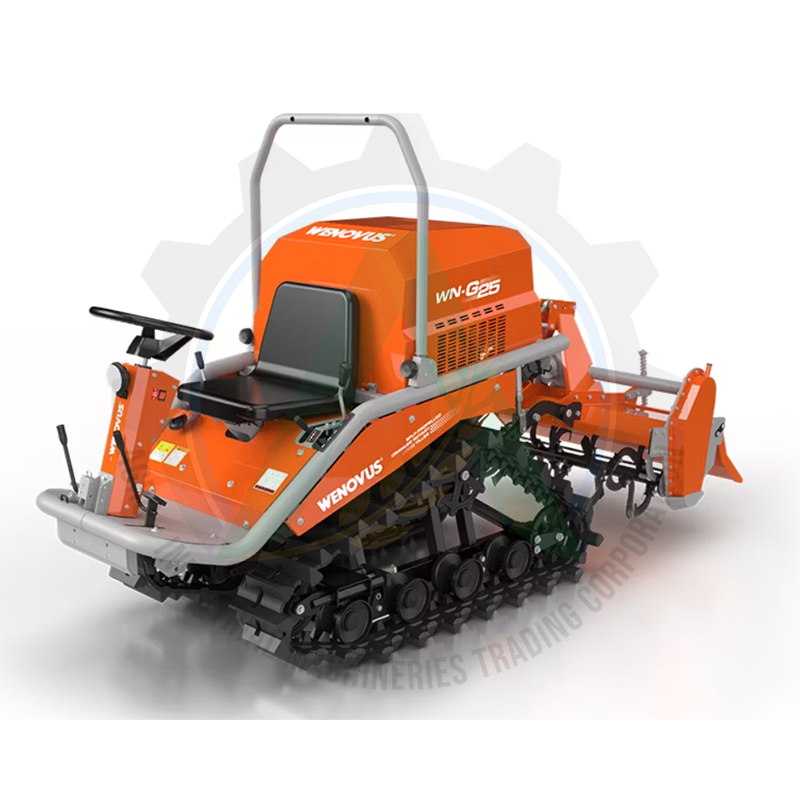

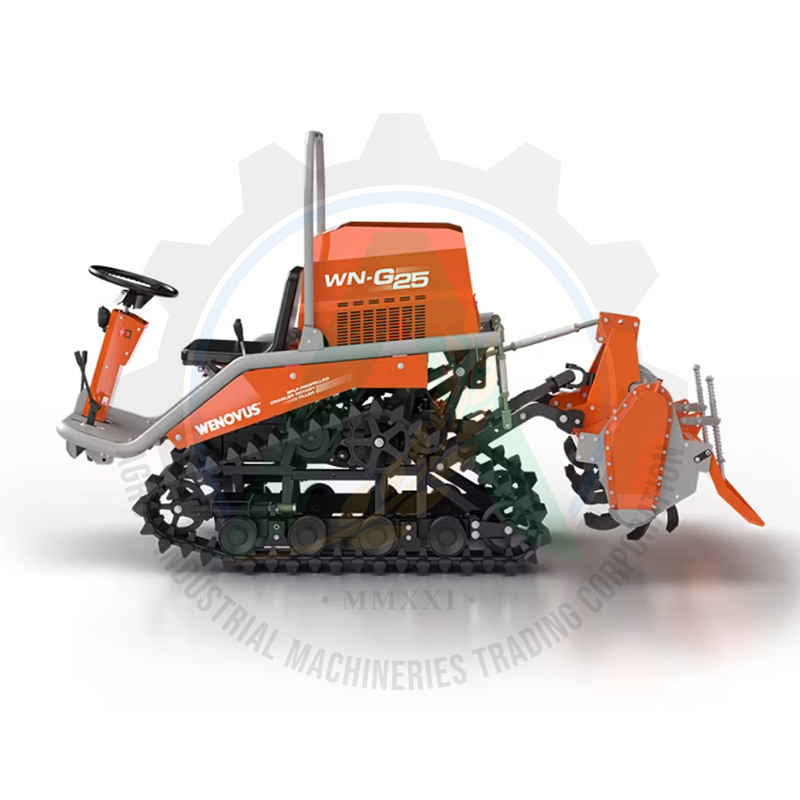

WN-G25 Crawler Rotary Tiller ( G-25 )
It can perform operations such as rotary tillage, ridging, furrowing, soil cultivation, and weeding. Suitable for rotary tillage and field management operations in mountainous areas, hills, orchards, vegetable gardens, and greenhouses. The entire machine has a compact structure, novel design, and good possibility. It has a maneuvering handle in front of the machine, the driver can operate the machine on foot with hand-held, it is safer to climb uphill and downhill, and has stronger off-road capability. Suitable for paddy fields and various dry land operations. Equipped with a high-performance twin-cylinder engine that can provide stronger power, an optimized transmission adopts 6 front and 2 reverse, and the wider plowing width makes the operation efficiency more efficient. Standard PTO interface adapts to various implements. The steering wheel is equipped with a power assist design, making it easy to turn, automatically returning to center, and providing soft and comfortable handling. The engine is rear mounted and fully covered with insulation, noise reduction, and shock absorption design, effectively reducing the impact of noise and vibration on the driver. Equipped with high treaded delta tracks with low grounding pressure for protected paddy and dryland operations. Uses one-sided braking for turn around in the same place.
